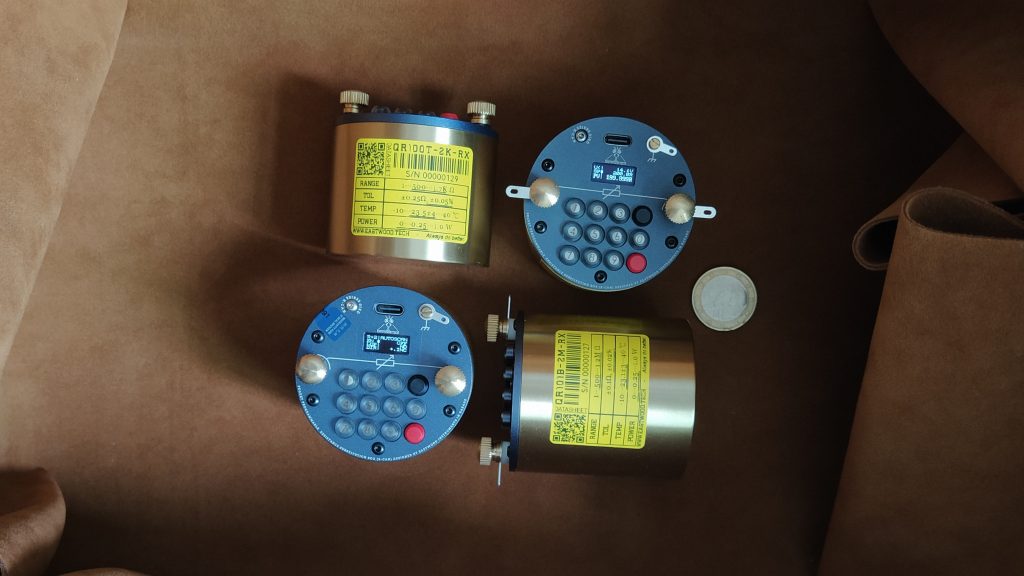

QR10 Edition 3/3+ (released on Kickstarter in Jul. 2022)Sell on Tindie & Taobao: Available on EleShop for EU customers:
As a candidate for replacing/upgrading conventional resistance decade box, QR10 has as good as, if not better than, the top class of the latter on the accuracy, range, resolution/step, repeatability, and temperature coefficient. It provides a " better operation experience " on the user interface, much higher rated power, and much smaller dimensions. More importantly, it's just a " programmable " resistance substitution box the way it should be – the user can either set desired output value by an integrated keypad or remotely control it via a USB-Serial COM port.
The COM port mentioned makes it suitable for advanced applications such as data acquisition and auto-tests, for example, sensor simulation and sensor auto-calibration.
Features:
- “True” resistance generated by relay-resistor network
- Easy-to-use keyboard and useful OLED display
- USB to serial communication interface, support private AT instruction set
- Initial high accuracy (>500Ω):
±0.05%(class T)；
±0.02% (class B)
- NO RESIDUAL RESISTANCE
- Wide range:
1Ω -630kΩ (0.1Ω/0.07Ω steps)
1Ω -1.2MΩ (0.125Ω steps)
1Ω -8.4MΩ (1Ω step)
- Maximum power rating up to 2.0W
- Safety output limit(user definable)
- Latched output with ZERO power consumption
- Allow user field calibration (after calibration accuracy can follow reference meter’s for grade B)
- Rechargeable Li-PO battery
- Portable with small dimensions and solid metal housing:
5.5cm (OD)× 5.5cm (H) or 7.0cm (H)
----------------------------------SPECIFICATION & MANUAL--------------------------------------
The latest version for on-sell products Edition 3/3+:
QR10 Specification & Manual v3.0 | QR10 说明书v3.0
Legacy versions (reserved only for β version products):
QR10 datasheet v1.2 | QR10 user manual v1.0QR10数据手册v1.2 | QR10用户手册v1.0
